Private Radios/Narrowband

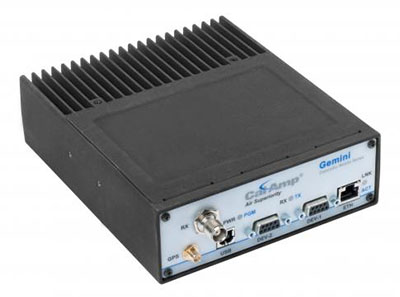

GEMINI G3-ADB AGILE DUAL-BAND MOBILE FOR PRIVATE NETWORKS

AGILE DUAL-BAND MOBILE FOR PRIVATE NETWORKS

The Gemini G3-ADB operates in the private licensed 700 and 800 MHz spectrum. Designed specifically for government, public safety agencies and public utilities, this agile dual band (ADB) model integrates the necessary functionality for data-only vehicular installations.

MISSION CRITICAL CONNECTIVITY FOR MOBILE APPLICATIONS

The Gemini combines 700 and 800/NPSPAC in a single unit that offers a seamless roaming across any combination of these channels (US only). Our patented Parallel-Decode technology, featuring dual receivers, and the use of HyperCode forward error correction (FEC), allow for greatest sensitivity especially in multi-path and fading environments. Equipped with a 12-channel GPS receiver, the Gemini can determine the position, speed and direction of the vehicle. This can then be reported on-board the vehicle and/or to a remote dispatcher. Embedded web server provides browser access for status and configuration of network parameters. Since the unit firmware and reconfigurations can be reprogrammed over-the-air, maintenance and upgrades are greatly facilitated. The Gemini comes with a one-year warranty. Extended warranty plans are available.

GEMINI G3-UHF MOBILE DATA MODEM FOR PRIVATE NETWORKS

MOBILE DATA MODEM FOR PRIVATE NETWORKS

The Gemini G3-UHF operates in the private licensed UHF spectrum and is designed specifically for government, public safety agencies and public utilities.

MISSION CRITICAL CONNECTIVITY FOR MOBILE APPLICATIONS

The Gemini G3-UHF model combines dual IF filters for 12.5 and 25 kHz in a single unit that offers seamless roaming across any combination of these channel bandwidths. If you plan to migrate to 12.5 kHz channel of whether your network is optimized with both 12.5 and 25 kHz, the Gemini G3 product will ease your planning by simply roaming automatically from one bandwidth to another, without manual intervention. Our patented Parallel-Decode technology, featuring dual receivers, and the use of HyperCode forward error correction (FEC), allow for greatest sensitivity especially in multi-path and fading environments. Equipped with a 12-channel GPS receiver, the Gemini G3 can determine the position, speed and direction of the vehicle. This can then be reported on-board the vehicle and/or to a remote dispatcher. Embedded web server provides browser access for status and configuration of network parameters. Since the unit firmware and reconfigurations can be reprogrammed over-the-air, maintenance and upgrades are greatly facilitated.

GUARDIAN

SERIAL MODEM OR ANALOG RADIO FOR LICENSED SPECTRUM

The Guardian wireless modem provides a high-speed data link suitable for a wide variety of applications requiring system security and diagnostic reporting. Designed for speed and efficiency, Guardian provides over-the-air data rates up to 19.2 kbps in a 25 kHz channel.

HIGH SPEED SERIAL CONNECTIVITY FOR REMOTE MONITORING & CONTROL

Selectable operating modes provide flexibility: RS-232, RS-422, and RS-485 compatible; simplex, half-duplex or full-duplex operation; RTS-CTS handshaking protocol or data activated transmission (DOX) mode. Transparent, asynchronous serial formats are supported, such as Modbus™, Modbus-RTU™, AB DF1™, and various other protocol formats. Guardian is also selectable for analog operation: paging, phone line substitution, slow speed data applications, 600 ohm or high impedance audio input/output selection. Real-time, non-intrusive online diagnostics report received signal strength (RSSI), RF power output, supply voltage, and other radio performance statistics. Field Programming Software odders unit programming, link testing and RF path verification. CalAmp products are covered by a standard one-year warranty.

Download the Guardian Datasheet

INTEGRA-TR

SERIAL RADIO MODEM FOR LICENSED SPECTRUM

The Integra-TR from CalAmp provides advanced features without complicated system setup. Available for UHF and VHF, the Integra-TR offers reliable data communications over an extended range. Virtually real-time data is transferred through this PC programmable, transparent modem with CWID for identification and CSMA to minimize retries and reduce channel interference.

RUGGED CONNECTIVITY FOR REMOTE MONITORING APPLICATIONS

Data-activated transmit (DOX) automatically activates the transmitter in the presence of data without needing an RTS handshake from terminal equipment. The Integra-TR also supports CTS flow control when the terminal rate exceeds the network rate. The Integra-TR also prevents transmission of any extraneous data bits to the terminal device, making it the perfect choice when working with protocols that cannot tolerate extra data bits. Remote online diagnostics monitor and maintain your communications link. Power, temperature, voltage, signal strength, antenna/feedline condition, and data decode performance are transmitted without application interruption.

Download the INTEGRA-TR Datasheet

PARAGON 4 DIGITAL BASE STATION CONTROLLER

DIGITAL BASE STATION CONTROLLER

The Paragon Base Station delivers optimum data rates while balancing coverage and capacity. Based on open IP architecture, each Paragon controller is equipped with a standard IP router, dual Ethernet 10/100 BaseT interfaces and AES 128-bit encryption to ensure system data is transferred securely.

MISSION CRITICAL CONNECTIVITY FOR MOBILE APPLICATIONS

To make the most efficient use of bandwidth, the Paragon utilizes “stateless” data compression and protocol reduction to compress both UDP and TCP packets transparently with minimal effort. Interoperability is easily accomplished using any IP v4 compliant application. The modem control unit is capable of handling over 900 million instructions per second, giving you the capacity and the exibility to expand your system to include other agencies based in or around your community. The Paragon 4 can be completely reprogrammed remotely through your LAN and backhaul lines and network maintenance can be carried out from a single location with no need to visit each site. A real-time operating system and flash file system make upgrades seamless and hassle free. Add an optional Network Management system and take full advantage of both oine and online diagnostics. The Paragon 4 comes with a one-year warranty. Extended warranty plans are available.

PHANTOM II

IP RADIO MODEM FOR LICENSE-FREE SPECTRUM

The Phantom II delivers secure, wireless connectivity in the license-free 902-928 MHz ISM band utilizing Frequency Hopping Spread Spectrum (FHSS) technology. Operational as a master, remote or repeater in a single unit, Phantom II offers extraordinary data throughput for point-to-point, point-to-multipoint and peer-to-peer networks. Typical uses include SCADA, industrial automation or any other data collection applications.

HIGH-SPEED DATA CONNECTIVITY FOR INDUSTRIAL AND UTILITY APPLICATIONS

Featuring two serial ports, one Ethernet port and one USB connection, Phantom II provides connectivity between Ethernet and serial devices. This IP modem not only delivers wireless communications between a base station and multiple remotes, it also functions as a high-speed, transparent bridge between two Ethernet networks. Phantom II features extensive system capabilities with full VLAN support (for separate management and data networking), user interface through local console, telnet, and web browser, and network management with SNMP V1, V2, and V3. And, assuring the best level of performance for each application, Quality of Service (QoS) is available for IP protocols and ports

Download the PHANTOM II Datasheet

VIPER SC+

INTELLIGENT IP ROUTER FOR LICENSED SPECTRUM

Designed for the energy and utility segment as well as the water or wastewater industries, the CalAmp Viper SC+ is an intelligent, point-to-multipoint bridge or router for licensed narrowband spectrum holders. The ruggedized Viper SC+ reliably delivers faster data speeds to support telemetry and SCADA applications in bandwidths ranging from 6.25 kHz to 100 kHz. Flexible for long-distance applications, this software-programmable router is fast, secure and intelligent.

VERSATILE, SECURE COMMUNICATIONS WITH MULTISPEED FUNCTIONALITY

Four times as fast as devices in its category, the Viper SC+ offers 256 kbps in 100 kHz channels, providing increased throughput for reliable, remote business-critical communications. The Viper SC+ boasts multispeed operation, which allows each Viper SC+ to communicate to a Viper SC+ Base Station at the fastest speed supported by a given signal strength. The result is a network where each RF link is optimized for performance and reliability.

Download the Viper SC+ Datasheet

Contact us today to learn more about our CalAmp products.
